ALIGN · Imaging wheel alignment system
9000 Essential
Professional TreadPlus 9000 Essential imaging wheel alignment system with SureAlign V45 Pro, motorized camera support and cabinet-based workflow.
Product overview
Where the 9000 Essential fits.
Professional TreadPlus 9000 Essential imaging wheel alignment system with SureAlign V45 Pro, motorized camera support and cabinet-based workflow. The gallery below shows the current product configuration.
Specifications
Key product information.
Use these figures for product comparison and initial site planning. Electrical supply, installation details, accessories and software availability are confirmed for each order and market.
- Product category
- Wheel alignment system
- Model
- 9000 Essential
- Software / platform
- SureAlign™ V45 Pro

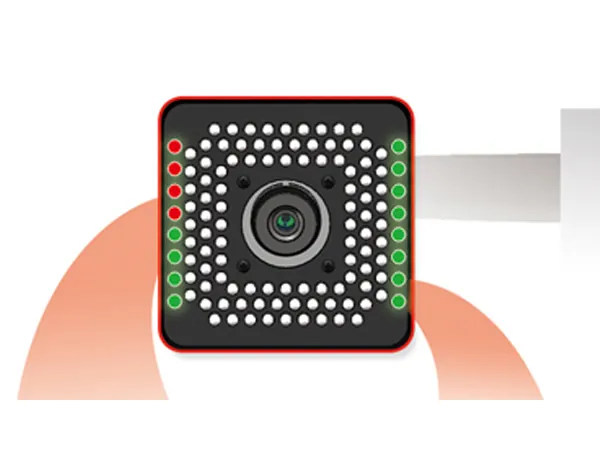

- Measurement system
- Imaging target tracking / optical 4-wheel measurement
- Cabinet
- Wheeled rolling cabinet with PC and printer storage
- Post
- Floor-bolted post with motorized camera positioning
- Monitor
- 27″ display
- Installation
- Floor drilling required; post is bolted to the floor and the cabinet can be positioned to the side within cable length
- Targets
- Checkerboard 4-target set
- Wheel clamp range
- 13″–25″ standard range
- Vehicle coverage
- Passenger vehicles, light trucks and SUVs
- Power
- Market-specific configuration; voltage, frequency, and plug type vary by destination. Maximum current 3 A.
- Printer power
- An optional laser printer must be connected directly to a wall outlet, not to the aligner
- SC installation geometry
- 2,800 mm camera distance; maximum vehicle track width 2,100 mm
- EC installation geometry
- 2,500 mm camera distance; maximum vehicle track width 2,100 mm
- Rear target range
- Up to 6,500 mm from camera with standard rear targets; up to 8,500 mm with extended rear targets
- Typical measurement time
- Typically less than 2 minutes for a complete standard measurement under normal operating conditions
- Compatible lift types
- Four-post alignment lift or scissor alignment lift
- Database regions
- North America, Europe, APAC, China and LATAM. Vehicle coverage varies by software version, licensed region, vehicle market, model year, trim level, and available data.
- Specification updates
- Update schedules and coverage vary by region; contact TreadPlus for the current database release
- VIN database / scan
- Available only with the North American database
- Report formats
- 7 formats
- Remote support
- Available through TeamViewer, subject to regional support arrangements
- Calibration methods
- Frame calibration or target calibration
- Recommended recalibration
- After physical damage or replacement of targets, cameras or related measurement hardware
- Options
- QC15 / QC20 tire-grip clamp compatible
- Parts warranty
- 2 years against manufacturing and workmanship defects; physical damage is excluded and labour coverage varies by region
Packing information
Crate dimensions and weight.
Camera beam and post crate
2,690 × 630 × 380 mm
106 × 22 × 16 inCabinet and clamps crate
1,140 × 720 × 1,185 mm
44 × 28 × 46 in- Approximate packed weight
- Approximately 480–530 lb total, depending on configuration
Long-crate dimensions vary slightly between EC and SC packages. Confirm final packing data before freight booking.
SureAlign software
Software for measurement, adjustment and reporting.
Read about the main SureAlign functions available for the 9000 Essential. Features vary by software version, hardware and region.
Lift Levelness
Establish a calibrated reference plane so lift or floor slope does not become part of the alignment reading.
How it works →MeasurementSpatial Dynamic
Maintain the calibrated measurement reference while the vehicle rolls or the lift structure changes slightly under load.

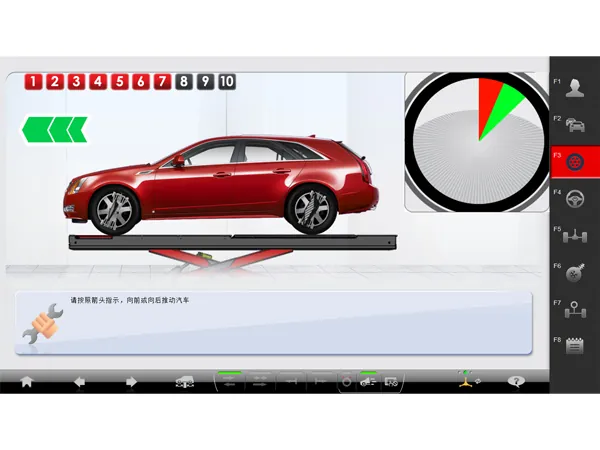

How it works →MeasurementCaster Sweep Options
Match the caster sweep range and movement style to the vehicle, bay and required verification level.
How it works →Adjustment ToolsToe+
Keep the required toe information visible while working through the dedicated Toe+ adjustment routine.
How it works →ProductivityQR Remote
Use a compatible phone or tablet as a local SureAlign display and remote control at the adjustment point.
How it works →ProductivityCustomizable Reports
Adapt the alignment report to the workshop, customer and level of technical detail required.
How it works →Product resources
Manuals, brochures and support.
Download the documents published for this model. Contact TreadPlus or your local distributor if you need material for a specific configuration.
Frequently asked questions
About the 9000 Essential.
Where does the 9000 Essential fit in the 9000 Series?
It is the cabinet-based daily-use model for workshops that want motorized camera positioning and a conventional rolling workstation.
Which software version is used on the 9000 Essential?
The current public configuration uses SureAlign™ V45 Pro.
What vehicles can the standard configuration measure?
The published configuration covers passenger vehicles, light trucks and SUVs within the supported clamp and bay ranges.
