9000 AIO

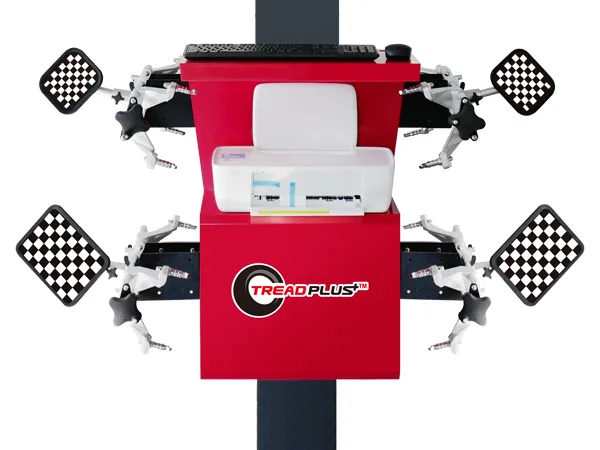

Compact imaging wheel alignment system with SureAlign V45 Pro and a fixed workstation rack mounted directly to the camera post.
Product overview
Where the 9000 AIO fits.
Compact imaging wheel alignment system with SureAlign V45 Pro and a fixed workstation rack mounted directly to the camera post. The gallery below shows the current product configuration.
Specifications
Key product information.
Use these figures for product comparison and initial site planning. Electrical supply, installation details, accessories and software availability are confirmed for each order and market.
- Product category
- Wheel alignment system
- Model
- 9000 AIO
- Software / platform
- SureAlign™ V45 Pro
- Measurement system
- Imaging target tracking with optical 4-wheel measurement
- Workstation
- Fixed rack mounted directly to the camera post
- Post
- Floor-bolted post with motorized camera positioning
- Monitor
- 23″ standard / 27″ optional
- Installation
- Floor drilling required; rack is mounted directly to the post
- Targets

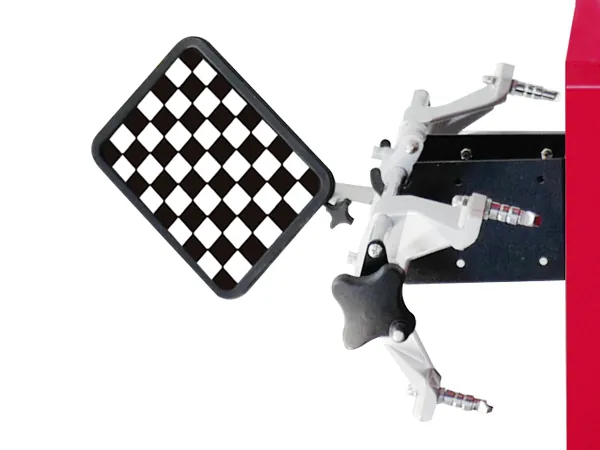

- Compact checkerboard 4-target set
- Wheel clamp range
- 13″–25″ standard range
- Vehicle coverage
- Passenger vehicles, light trucks and SUVs within clamp range
- Power
- Market-specific configuration; voltage, frequency, and plug type vary by destination. Maximum current 3 A.
- Printer power
- An optional laser printer must be connected directly to a wall outlet, not to the aligner
- SC installation geometry
- 2,800 mm camera distance; maximum vehicle track width 2,100 mm
- EC installation geometry
- 2,500 mm camera distance; maximum vehicle track width 2,100 mm
- Rear target range
- Up to 6,500 mm from camera with standard rear targets; up to 8,500 mm with extended rear targets
- Typical measurement time
- Typically less than 2 minutes for a complete standard measurement under normal operating conditions
- Compatible lift types
- Four-post alignment lift or scissor alignment lift
- Database regions
- North America, Europe, APAC, China and LATAM. Vehicle coverage varies by software version, licensed region, vehicle market, model year, trim level, and available data.
- Specification updates
- Update schedules and coverage vary by region; contact TreadPlus for the current database release
- VIN database / scan
- Available only with the North American database
- Report formats
- 7 formats
- Remote support
- Available through TeamViewer, subject to regional support arrangements
- Calibration methods
- Frame calibration or target calibration
- Recommended recalibration
- After physical damage or replacement of targets, cameras or related measurement hardware
- Options
- QC15 / QC20 tire-grip clamps available separately
- Parts warranty
- 2 years against manufacturing and workmanship defects; physical damage is excluded and labour coverage varies by region
Packing information
Crate dimensions and weight.

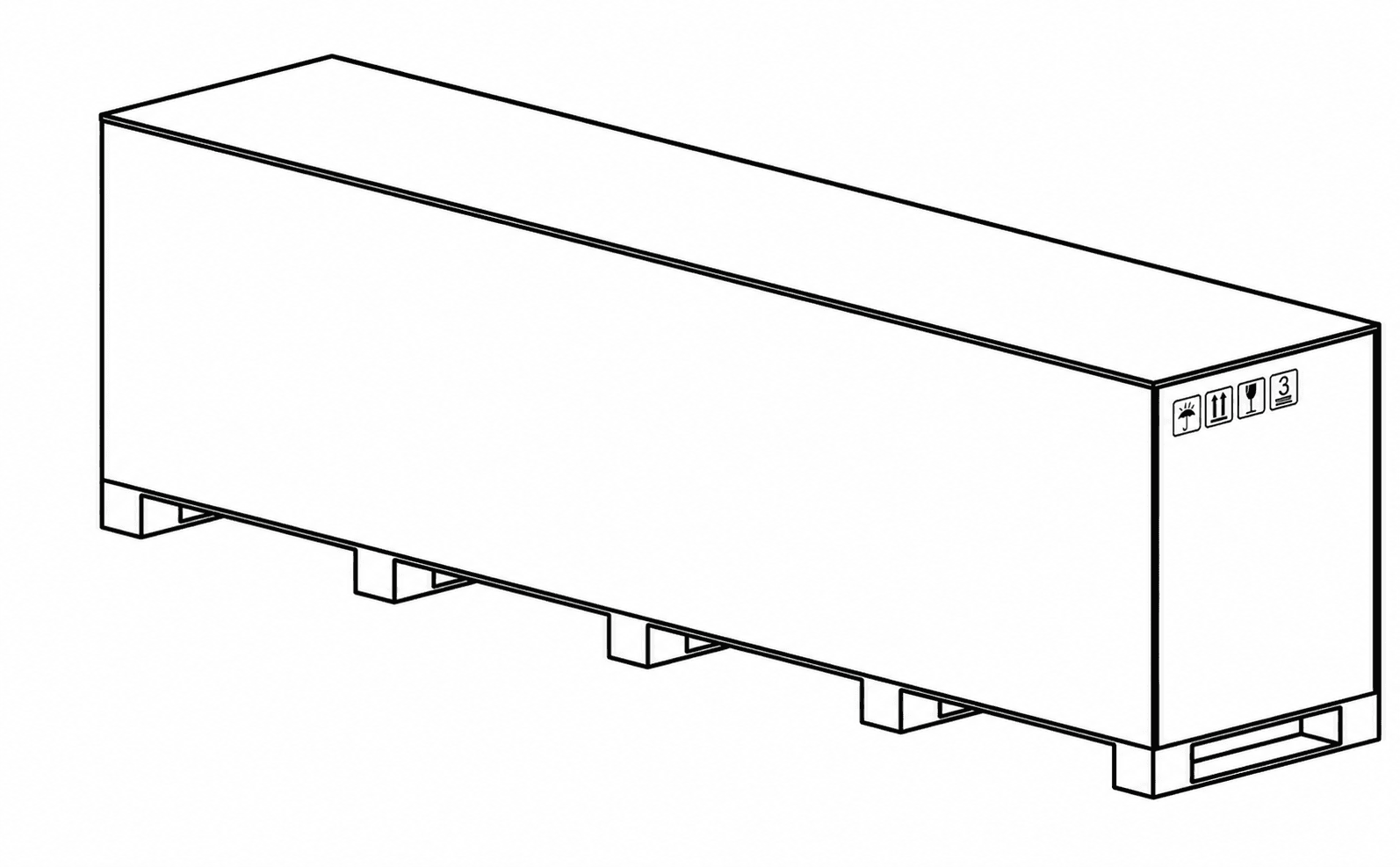

Complete system crate
2,690 × 565 × 780 mm
106 × 22 × 32 in- Approximate packed weight
- Approximately 420–440 lb, depending on configuration
Long-crate dimensions vary slightly between EC and SC packages. Confirm final packing data before freight booking.
SureAlign software
Software for measurement, adjustment and reporting.
Read about the main SureAlign functions available for the 9000 AIO. Features vary by software version, hardware and region.
Lift Levelness
Establish a calibrated reference plane so lift or floor slope does not become part of the alignment reading.
How it works →MeasurementSpatial Dynamic
Maintain the calibrated measurement reference while the vehicle rolls or the lift structure changes slightly under load.
How it works →MeasurementCaster Sweep Options
Match the caster sweep range and movement style to the vehicle, bay and required verification level.
How it works →Adjustment ToolsToe+
Keep the required toe information visible while working through the dedicated Toe+ adjustment routine.
How it works →ProductivityQR Remote
Use a compatible phone or tablet as a local SureAlign display and remote control at the adjustment point.
How it works →ProductivityCustomizable Reports
Adapt the alignment report to the workshop, customer and level of technical detail required.
