BALANCE · Professional wheel balancer
B40
Professional B40 wheel balancer with Friction Drive, 40 mm shaft, LED interface and a top weight tray console with a right-side shaft pass-through.
Product overview
Where the B40 fits.

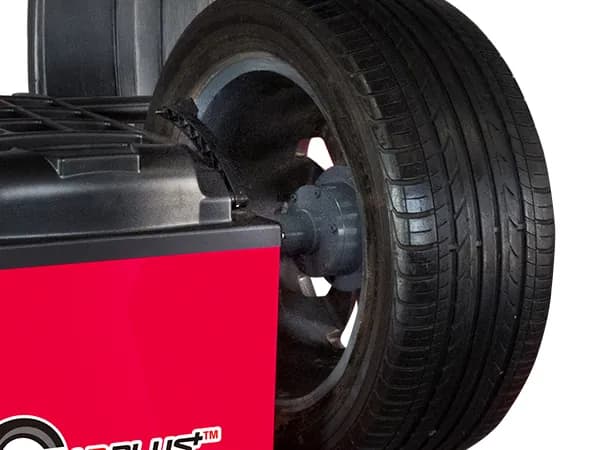

Professional B40 wheel balancer with Friction Drive, 40 mm shaft, LED interface and a top weight tray console with a right-side shaft pass-through. The gallery below shows the current product configuration.
Specifications
Key product information.
Use these figures for product comparison and initial site planning. Electrical supply, installation details, accessories and software availability are confirmed for each order and market.
- Product category
- Wheel balancer
- Model
- B40
- Software / platform
- B40 operator software
- Drive system

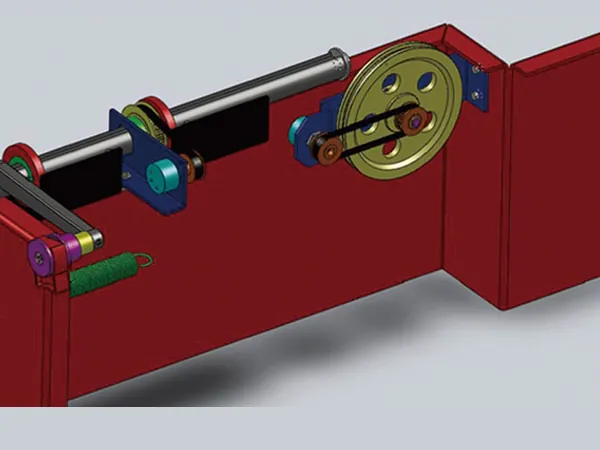

- Friction Drive™ / virtual direct drive
- Shaft
- 40 mm shaft
- Centering
- 4-cone centering system
- Display

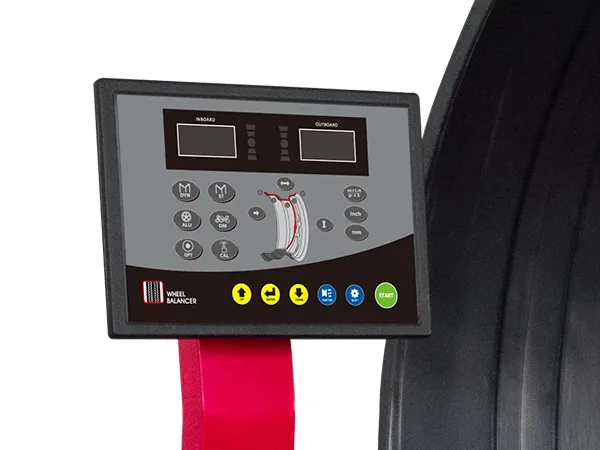

- LED operator display
- Top console
- Molded top weight tray console with right-side shaft pass-through
- Brake
- Automatic brake with manual override
- Wheel capacity
- Up to 65 kg by current configuration
- Balancing accuracy
- 1 g
- Balancing speed
- 150 rpm
- Rim diameter range
- Up to 28″
- Rim width range
- Up to 11″
- Automatic data entry
- Automatic diameter and distance entry; automatic width entry is optional
- Balancing modes
- Dynamic, static, ALU, Smart, optimization and motorcycle modes
- Standard cones
- 4-cone system
- Parts warranty
- 1 year; regional terms and labour coverage may vary
Product resources
Manuals, brochures and support.
Download the documents published for this model. Contact TreadPlus or your local distributor if you need material for a specific configuration.
Frequently asked questions
About the B40.
What is the molded component on top of the B40?
It is a top weight tray console for organizing cones, tools and wheel weights. The right side includes a pass-through so the spindle shaft remains clear.
What drive system does the B40 use?
The B40 uses TreadPlus Friction Drive™ with a virtual direct-drive operating concept.
What shaft size is used?
The published configuration uses a 40 mm shaft with a four-cone centering system.
What is the published wheel-capacity limit?
The current public configuration lists wheel capacity up to 65 kg. Final configuration should be confirmed on quotation.
What balancing accuracy and speed are published for the B40?
The B40 is specified at 1 g balancing accuracy and 150 rpm balancing speed.
Which operating modes are included?
The B40 includes dynamic, static, ALU, Smart, optimization and motorcycle modes. Automatic diameter and distance entry are standard; automatic width entry is optional.
Next step
Discuss the B40 with TreadPlus.
Tell us about your workshop, vehicle range and location. We can confirm product availability, installation requirements, accessories and participating support resources for your market.
