LIFT · Alignment scissor lift
SS1257
TreadPlus SS1257 alignment scissor lift for professional wheel alignment bays, with alignment-ready platforms and workshop support.
Product overview
Where the SS1257 fits.

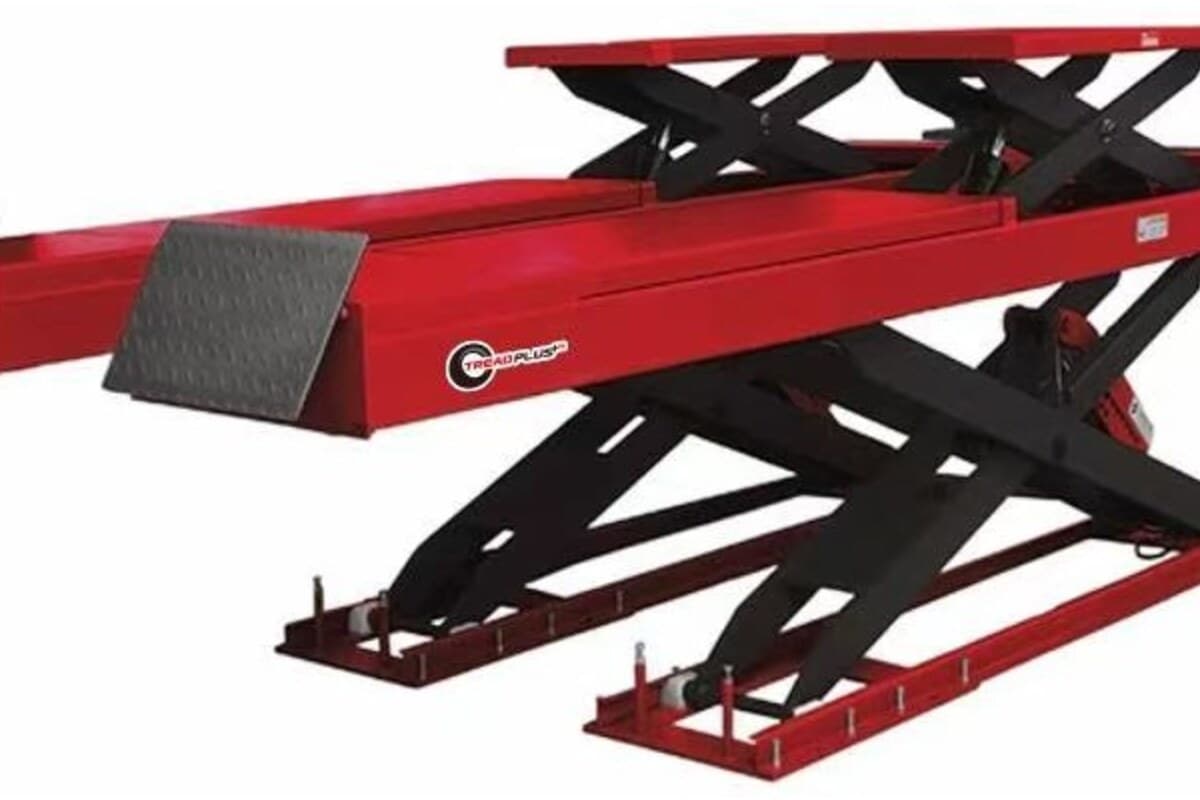

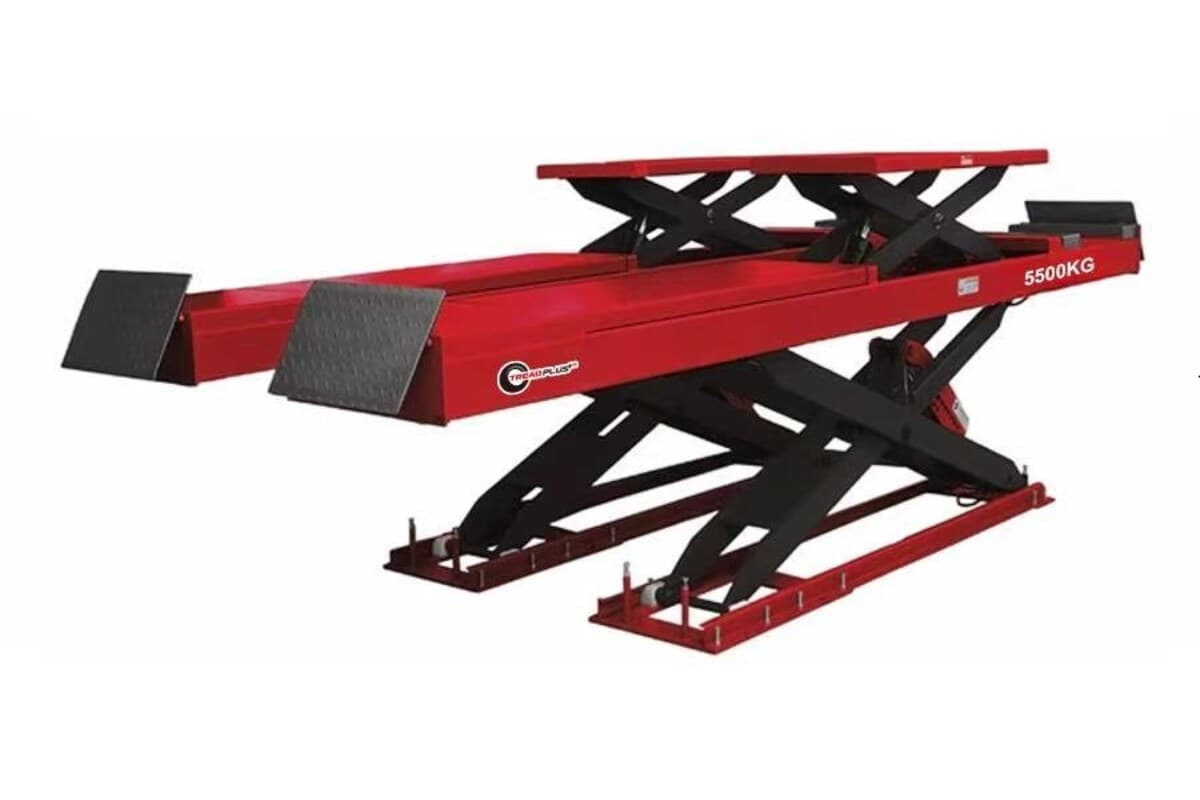

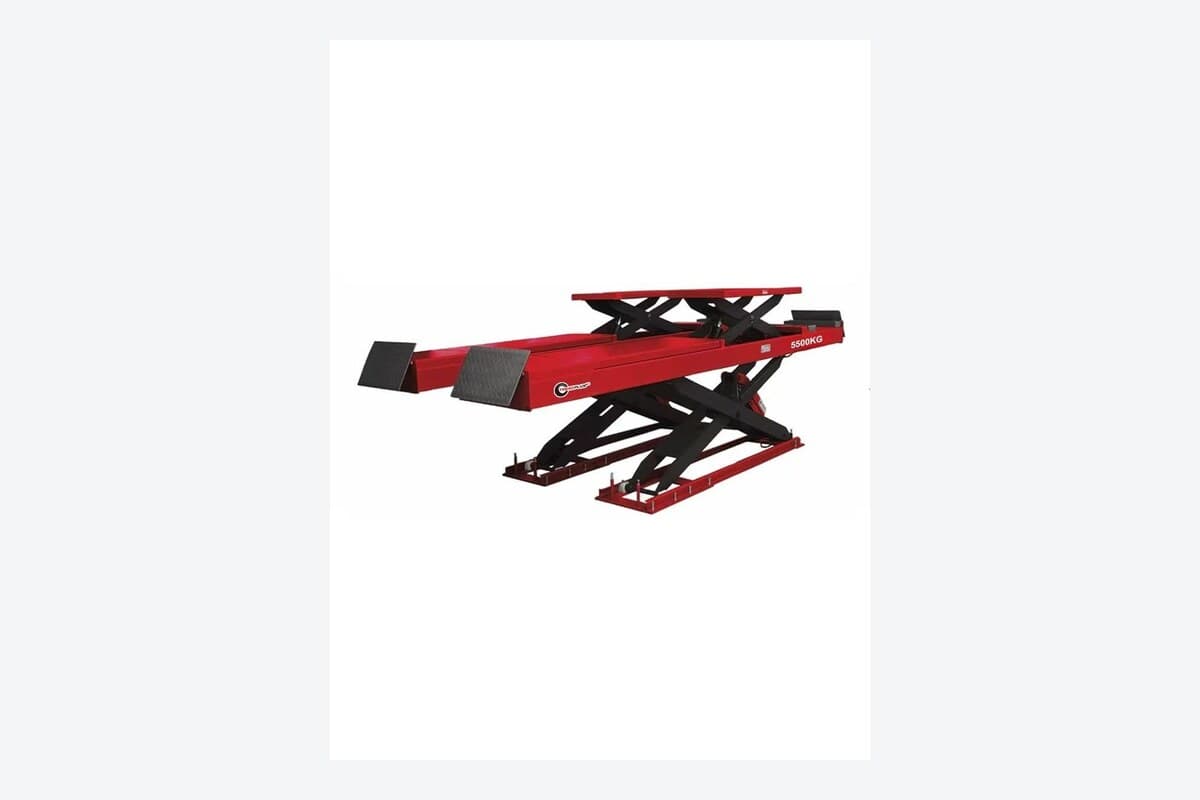

TreadPlus SS1257 alignment scissor lift for professional wheel alignment bays, with alignment-ready platforms and workshop support. The gallery below shows the current product configuration.
Specifications
Key product information.
Use these figures for product comparison and initial site planning. Electrical supply, installation details, accessories and software availability are confirmed for each order and market.
- Product category
- Alignment-ready scissor lift
- Model
- SS1257
- Software / platform
- Lift integration ready
- Main lift capacity
- 5,500 kg / 12,000 lb
- Main platform length
- 5,700 mm
- Main platform width
- 670 mm per platform
- Initial height
- 380 mm
- Main lift lifting height
- 2,200 mm
- Sub-lift platform
- 1,550–1,850 mm adjustable length, 625 mm width
- Sub-lift lifting height
- 435 mm
- Motor power
- 3 kW; 380V / 220V configuration by region
- Gross weight
- 3,180 kg
- 20 ft container loading
- 7 sets
- Compliance
- Varies by model and destination market; refer to the applicable product documentation.
Product resources
Manuals, brochures and support.
Download the documents published for this model. Contact TreadPlus or your local distributor if you need material for a specific configuration.
Product documents are available through TreadPlus and its authorized distributors.
Request documentationFrequently asked questions
About the SS1257.
What distinguishes the SS1257 from the SS1253?
The SS1257 uses a 5,700 mm main platform, providing 400 mm more deck length than the SS1253.
What is the main lift capacity?
The published capacity is 5,500 kg or 12,000 lb.
What is the published lifting height?
The main lift lifting height is listed at 2,200 mm.
Next step
Discuss the SS1257 with TreadPlus.
Tell us about your workshop, vehicle range and location. We can confirm product availability, installation requirements, accessories and participating support resources for your market.
