CHANGE · Professional tire changer

T823GDR tilt-back tire changer

Automatic tilt-back tire changer with a right-side assist arm for passenger and light-truck tires. Clamps 10″–26″ external and 12″–29″ internal, tires up to 1,080 mm (43″), wheels up to 350 mm wide, 8–10 bar.

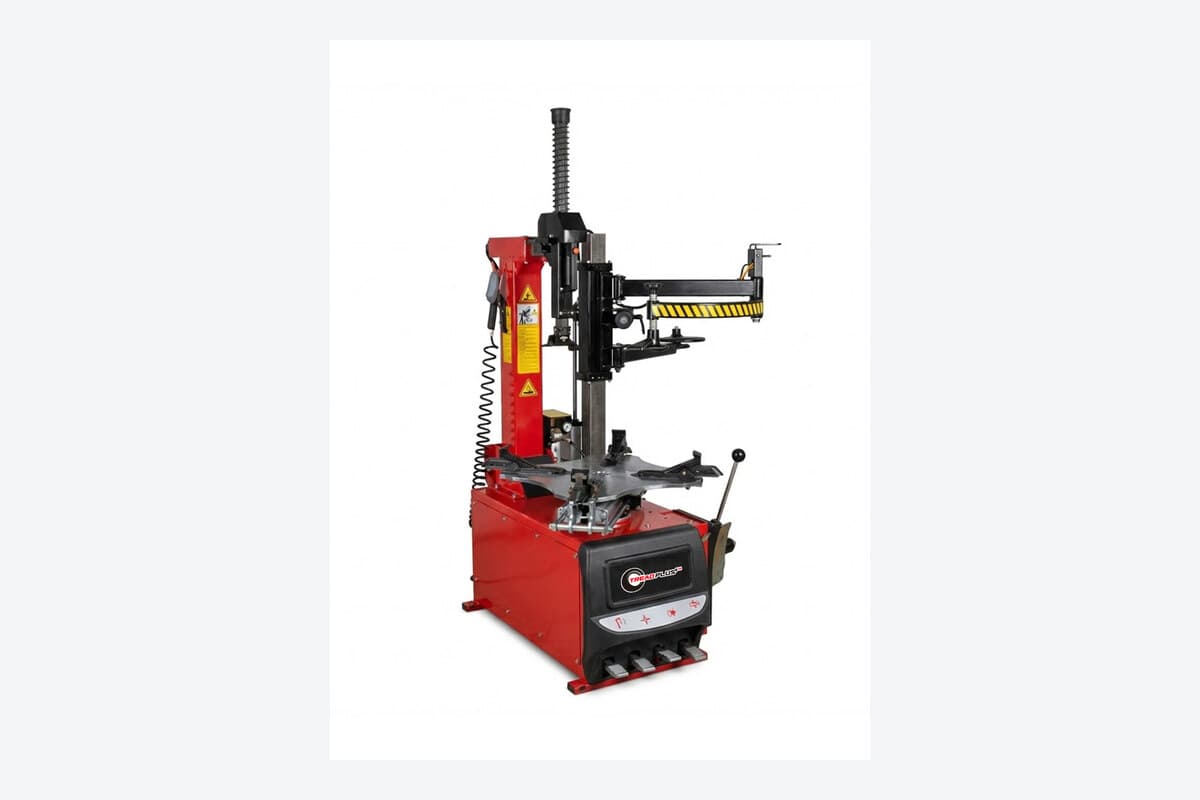

TreadPlus T823GDR product view

Product overview

Where the T823GDR tilt-back tire changer fits.

The gallery below shows the current product configuration.

Specifications

Key product information.

Use these figures for product comparison and initial site planning. Electrical supply, installation details, accessories and software availability are confirmed for each order and market.

Product category
Tire changer
Model
T823GDR
Software / platform
Tilt-back tire-changing workflow
External rim mounting
10″–26″
Internal rim mounting
12″–29″
Maximum tire diameter
43″ / 1080 mm
Maximum wheel width
13.7″ / 350 mm
Working pressure
8–10 bar
Net / gross weight
345 / 380 kg complete set with HELP arm
Compliance
Varies by model and destination market; refer to the applicable product documentation.

Product resources

Manuals, brochures and support.

Download the documents published for this model. Contact TreadPlus or your local distributor if you need material for a specific configuration.

Selection and technical guidance

Plan the equipment around your workshop.

Start with wheel dimensions, tire construction and the assemblies technicians encounter regularly. Confirm clamping limits, assist-arm suitability, air and electrical supply, rim protection and operator training. Do not assume every run-flat or specialty assembly is supported without checking the selected tooling and procedure.

Frequently asked questions

About the T823GDR tilt-back tire changer.

What type of tire changer is the T823GDR?

It is an automatic tilt-back tire changer equipped with a right-side assist arm.

What is the published maximum tire diameter?

The current public specification lists a maximum tire diameter of 43 inches or 1080 mm.

What air pressure is required?

The published working-pressure range is 8–10 bar. Site air preparation should be confirmed before installation.

Next step

Discuss the T823GDR tilt-back tire changer with TreadPlus.

Tell us about your workshop, vehicle range and location. We can confirm product availability, installation requirements, accessories and participating support resources for your market.
