The TreadPlus B40 is a professional wheel balancer built for high-throughput automotive service operations. Laser sensors deliver precise rim distance and weight position readings, while the clear LED operator display guides operators through every balance cycle. Optionally paired with the QC20 quick-change clamping system for faster, hub-centric wheel mounting.
Built-in laser sensors automatically capture rim diameter and width, eliminating manual data entry errors and ensuring weight placement accuracy on every balance cycle.
⚡
QC20 Quick-Change Clamping
The optional QC15 or QC20 system replaces traditional cone clamping with a hub-centric adapter that mounts and dismounts in seconds — reducing cycle time and improving balance accuracy for low-profile fitments.
🎛️
Clear LED Display
The B40's LED operator panel displays imbalance values and weight positions clearly, delivering a clear path to the correct balance solution every time.
🔄
Static & Dynamic Modes
Switch between single-plane static balancing for narrow wheels and two-plane dynamic balancing for standard and wide-profile fitments — covering the full range of vehicles in a modern service bay.
🧰
Complete Shop Solution
Pair the B40 with the TreadPlus 9000 series wheel aligners and RTA100 tread scanners to offer customers a complete, professional tire service from a single trusted equipment supplier.
🌍
Global Support Network
Parts stocked in Oakville and supported by TreadPlus partners in Brazil, Costa Rica, Poland, and China — wherever your shop operates, help is a call away.
Frequently Asked Questions
B40 — FAQ
The B40 is a professional dynamic wheel balancer for automotive service shops. It uses laser sensors for precise rim distance and weight position measurement and features an LED display for clear operator guidance through every balance cycle.
QC20 is TreadPlus's quick-change hub-centric clamping system for the B40. It replaces traditional cone clamping with a hub adapter that mounts and dismounts in seconds, reducing cycle time per wheel and improving accuracy for low-profile and performance tires.
Yes. The B40 performs both static (single-plane) and dynamic (two-plane) wheel balancing, covering all common tire vibration conditions for passenger cars, light trucks, and SUVs.
The B40 includes a standard 5-cone set covering 25–65mm bore sizes and uses an M30 spindle thread with a quick-release wing nut. With the optional QC15 or QC20 system, hub-centric mounting is available for a wider range of passenger car fitments.
Yes. The B40 user manual can be downloaded at treadplus.com/manual.html. Remote installation and configuration support is also available via TeamViewer QuickSupport from KJC Engineering Canada.
The B40 runs on a single-phase power supply. It is compatible with electrical standards in Canada, USA, Brazil, Costa Rica, Poland, and China. Contact KJC Engineering Canada for the exact voltage specification for your region.
KJC Engineering Canada stocks B40 replacement parts at our Oakville warehouse for same or next business day shipping. View the full parts list at treadplus.com/parts.html or call (416) 977-1616.
Yes. The B40 is designed to complement the TreadPlus 9000 series wheel aligners and RTA100 tread scanners, allowing shops to provide a complete professional tire service — alignment, balancing, and tread depth assessment — from one supplier.
Product Photography
Photo Gallery

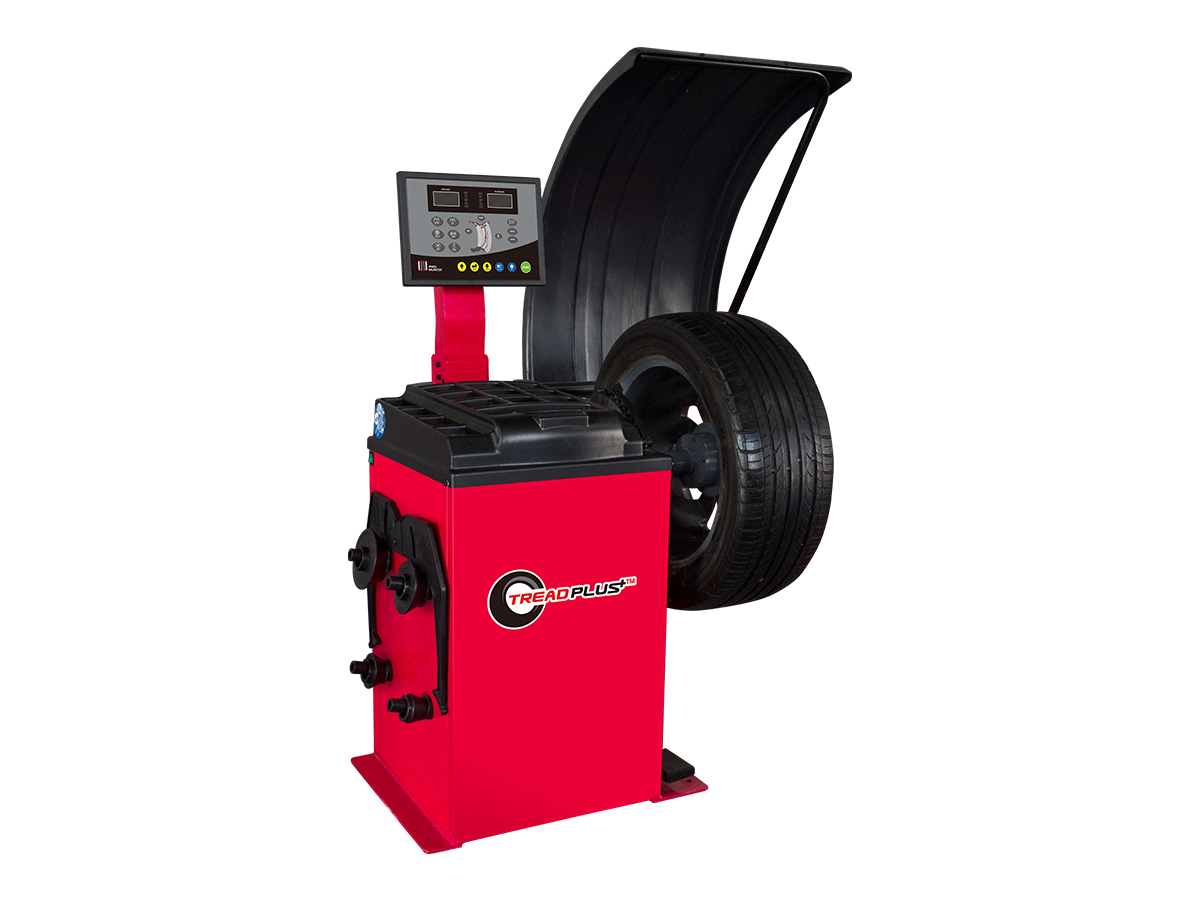

/photos/b40-hero.jpg1200×900 pxHero — full balancer unit, 3/4 front angle, studio
/photos/b40-spindle.jpg900×900 pxM30 spindle and cone set close-up
